Trailer Jack Knowledge Analysis: Types, Uses And Selection Guide

In the trailer and RV industry, the trailer jack is an indispensable and important component. It is not only used to raise and lower the front end of the trailer to facilitate connecting or disconnecting the tractor, but also to maintain the stability of the trailer when parked. This article will focus on the popular search keywords and systematically explain the types, uses, structural components and maintenance methods of trailer jacks to help users scientifically select and extend the service life of the product.

1. Common types of trailer jacks (Types of Trailer Jacks)

According to the structure and use, common trailer jacks mainly include:

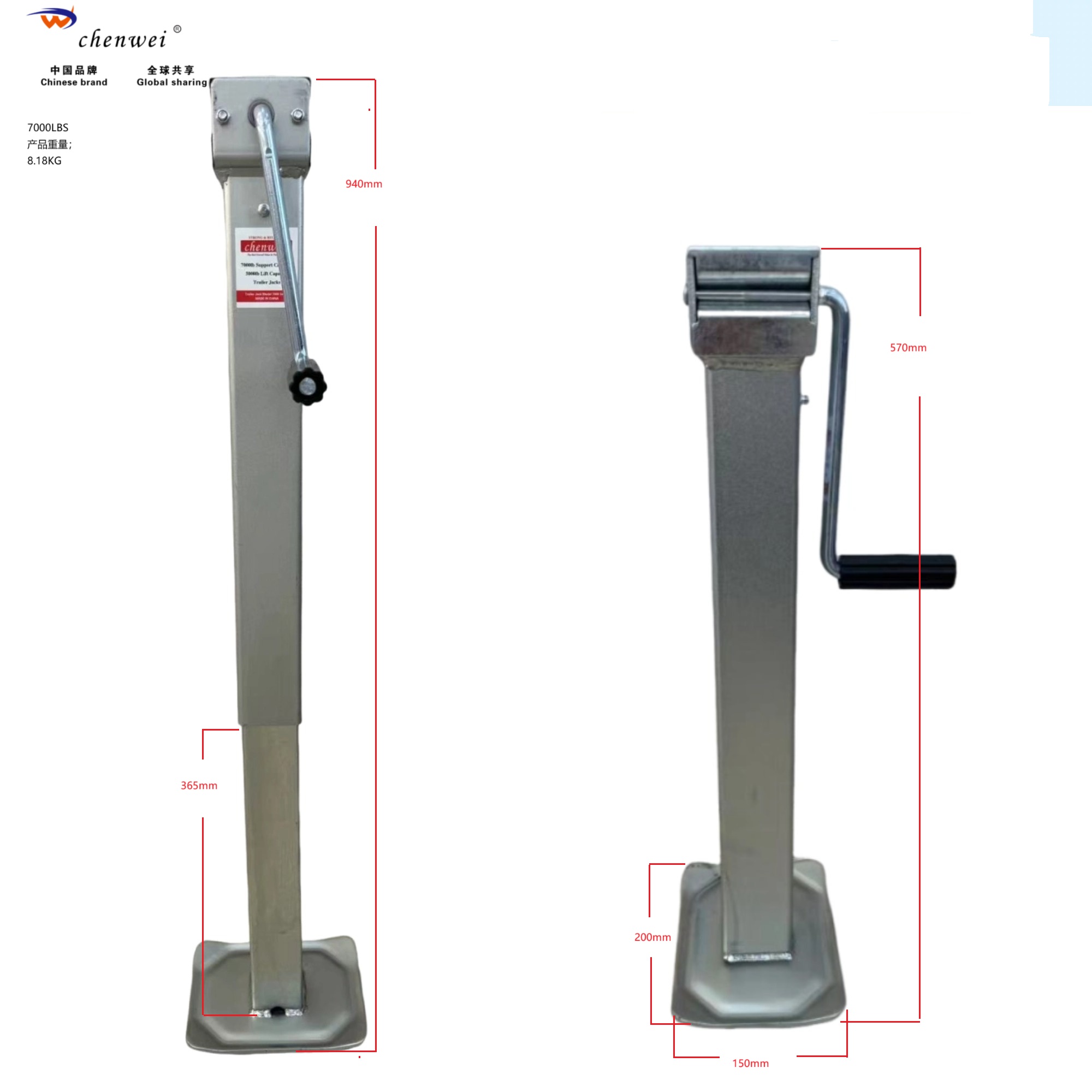

Straight leg jack (Square Tube Trailer Jack): The structure is sturdy and suitable for heavy loads. It is usually used for heavy trailers of 8000lbs or 10000lbs.

Side Crank Trailer Jack: It is operated by the side handle, which is more labor-saving for lifting. It is suitable for agricultural trailers, industrial trailers, etc.

Swivel Wheel Trailer Jack: With wheels, it is easy to push and is suitable for small RVs or light trailers.

Hollow Jack: It adopts a lightweight hollow structure to reduce the overall weight and improve portability.

Drop Leg Jack: It has a fast-retractable drop leg to improve work efficiency and is commonly used in RVs (recreational vehicles) and agricultural trailers.

2. How to choose a suitable trailer jack? (What Size Trailer Jack Do I Need?)

When choosing a jack, the following points should be considered:

Load-bearing capacity: Common specifications include 7000 pounds, 8000 pounds, 10,000 pounds, 10 tons, etc., which need to match the total weight of the trailer.

Installation method: such as welding, bolting, whether there is a square tube flange (Square Tube Flange) or mounting bracket (Mounting Flange).

Lifting method: side wind control, top crank handle, electric control, etc.

Application scenarios: Different environments such as agriculture, industry, commercial, and RV camping have different requirements for stability and materials.

3. Introduction to the structure and components of the jack (Square Tube, Flange, Grease Fittings)

High-quality trailer jacks are usually equipped with:

Galvanized inner tube (Galvanized Tube): rust-proof and corrosion-resistant, suitable for long-term outdoor use.

Unpainted metal outer tube (Raw Outer Tube): Can be painted for protection as needed.

Built-in grease fitting (Grease Fitting): Convenient for daily lubrication and maintenance.

Polyethylene cap (Polyethylene Cap): Dustproof and waterproof.

4. Lubrication and maintenance tips for jacks (How to Lubricate or Grease a Trailer Jack)

Regular lubrication is the key to keeping the jack running smoothly:

Find the grease nozzle position (Grease Zerk) and use a grease gun to inject grease.

If the jack is not smooth, you can first disassemble it to check whether there is foreign matter stuck or gear wear.

It is recommended to lubricate every 20 uses, especially for RV or agricultural equipment that is frequently lifted and lowered.

5. FAQs

What is a tongue jack?

It is a jack installed at the front end of the trailer's "tongue" to adjust the connection height between the trailer and the tractor.

How does a trailer jack work?

The worm gear system is driven by a handle or motor to move the jack tube up and down, thereby lifting and lowering the trailer.

What is the purpose of a jack in lifting a car?

To provide support to prevent the vehicle from moving when changing tires, performing chassis inspections or repairs.

6. Export and supply trends (Exporter Perspective)

With the rise of Made in China, more and more manufacturers like Chenwei Machinery have become RV Screws Exporters and trailer parts suppliers. The products include not only trailer jacks, but also square tube flanges, fifth wheel hook parts, black powder spray brackets, etc., which have gradually become the focus of global buyers.

VII. Summary

Although the trailer jack is small, it plays a vital role in the safety and efficiency of the trailer system. Understanding its type, structure, selection and maintenance methods can help extend the service life of the equipment and improve operating efficiency. As a professional manufacturer, Chenwei Machinery provides high-quality, multi-specification jack products, and welcomes global customers to consult and customize.

For more information about product parameters and customized services, please visit our official website or contact our sales team directly.
